BOEING GOFLY CHALLENGE


PROJECT OVERVIEW

Key Challenges: The personal flying device must be safe, quiet, ultra-compact, and near-VTOL—capable of carrying a single person for a distance of 20 miles without refueling or recharging.

Objectives & Goals: Provide efficient VTOL design that meets design validation and criteria design concept/prototype/design consideration.

Design Pros:

  1. Compactness for ease of use >> changing the speed of one rotor will only change horizontal direction and lift

  2. Two separate rotors turn, lift and point up or down when the rpm of one changes, making a more difficult equilibrium

  3. Allows for heavier payload limited in their flight envelope

  4. Net Zero Torque


SPECIFICATIONS & MOVEMENT

  1. Operators will use handlebars to control direction, speed, and height.

  2. At standard flying elevation, the user will engage the suspended handlebars.

  3. Similarly, the handle bars can be pulled (down) and pushed (up) to control the height of the vehicle.

  4. These commands can be used simultaneously ensuring the complete control of the vehicle

  5. Directional handle bars guide, steer, and direct  vehicle

  6. Braking system implemented in the swash plates

  7. Forward & backwards motion determines acceleration & deceleration of vehicle

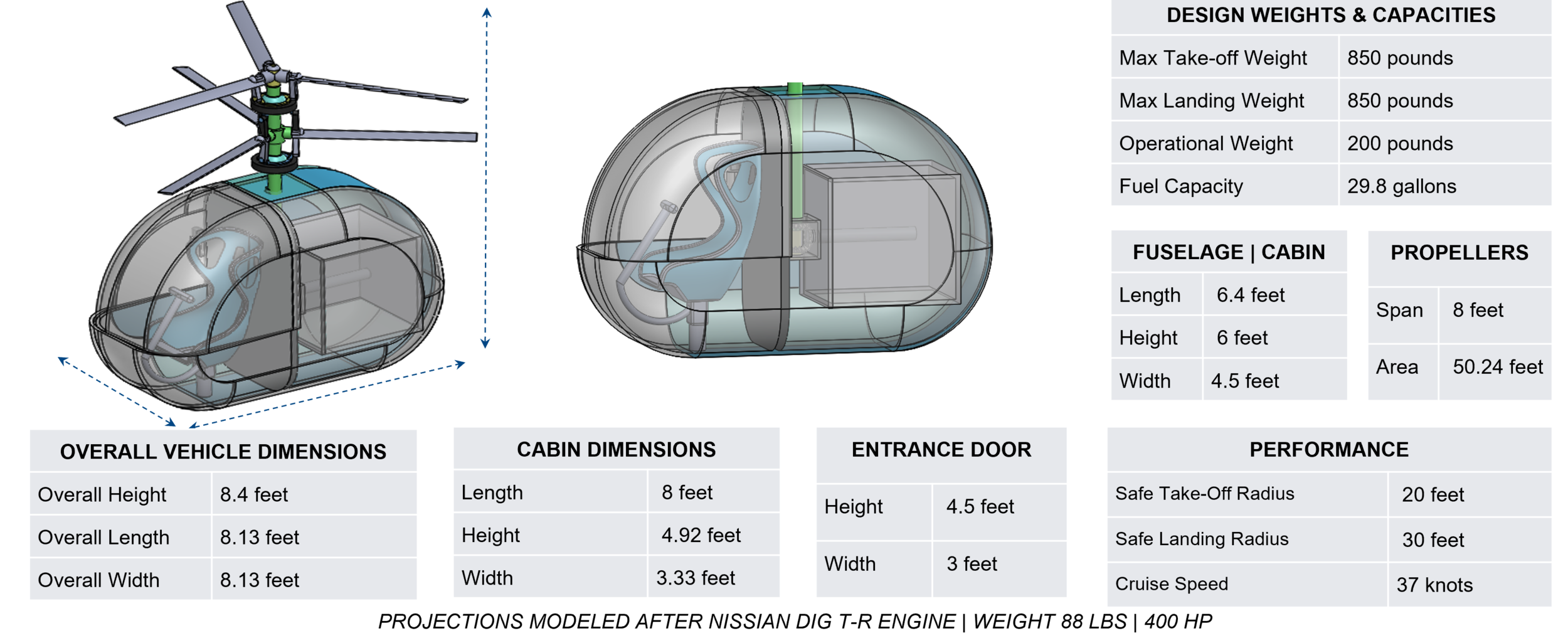

BODY & DESIGN

  1. Swash plate control system allows two coaxial propellers

  2. Transmit power at varying angles at constant rotational speed.

  3. Changes in direction, speed, a height without any hindrances due to parts in friction.

  4. Egg shape decreases the friction drag on the surface area--minimizing resistance.

  5. Allows for better flight efficiency, immovability, and a more compact design.

  6. Minimal blind spots during operation

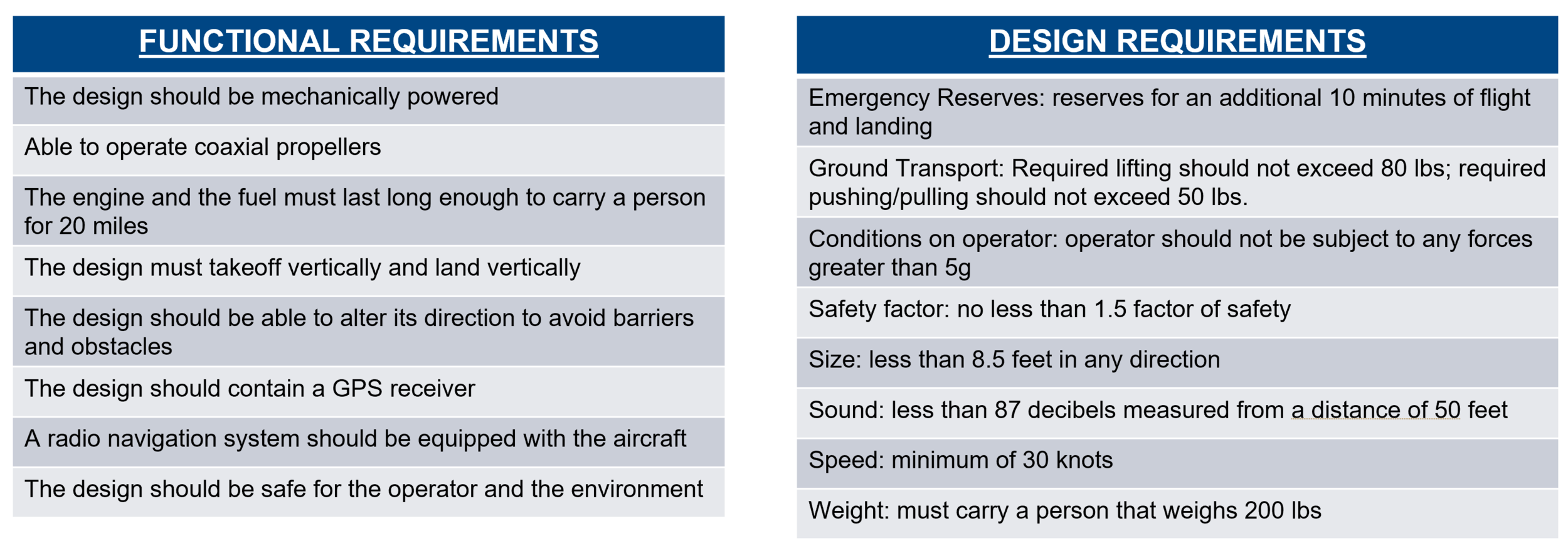

DESIGN REQUIREMENTS

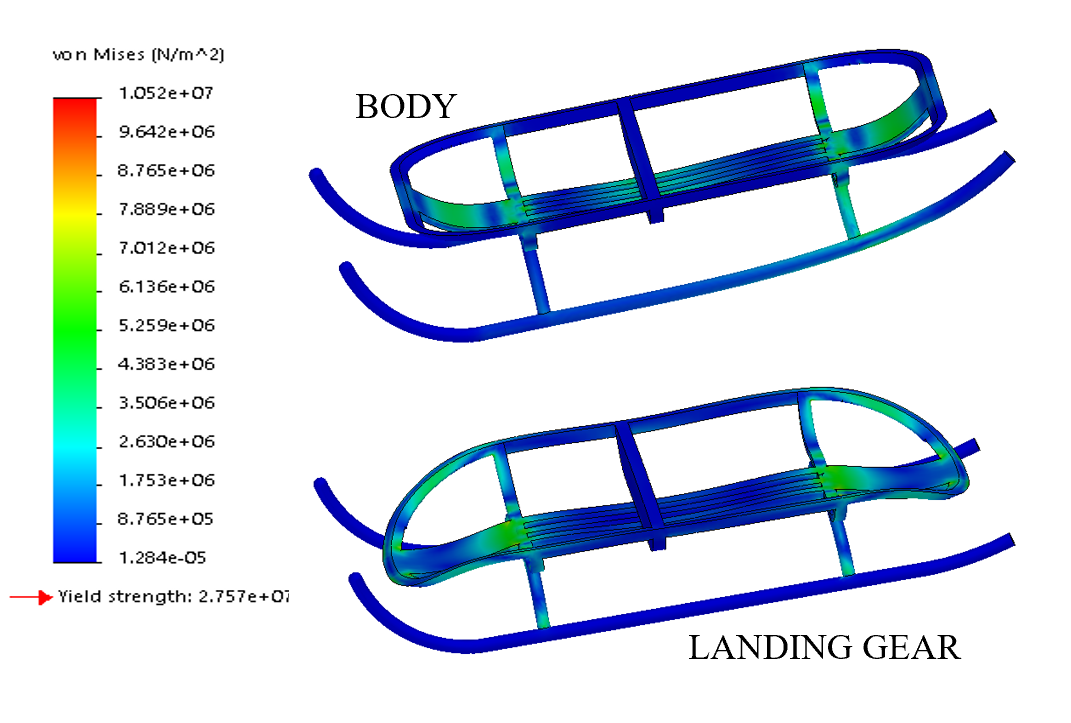

FA ANALYSIS


FLOW SIMULATION: MAIN BODY

  • V = 30 mph =13.4112m/s


F

LOW SIMULATION: BLADES

  • V = 30 mph=13.452 m/s
